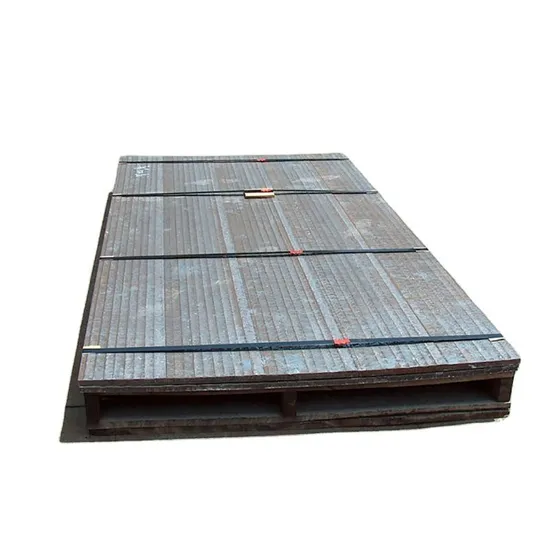

Bimetallic Composite Surfacing Overlay Wear Abrasion Resistant Plate Used in Dredging Ports Mines Cement Plants

Bimetallic Composite Surfacing Overlay Wear Abrasion Resistant Plate Used in Dredging Ports Mines Cement Plants

Overview Product Description High hardness abrasion resistant hardness bimetal plate Atmix wear plate are manufactured b
SHARE

Description

Overview
Basic Info.
Model NO. Chromium carbide overlay wear plate
Width 1000 1219 1250 1500 2000mm
Processing Service Welding, Punching, Cutting, Bending, Decoiling
Alloy or Not Is Alloy
Length 1000 1500 2000 or as Required
G Cold Rolled Steel Products, Making SMA Steel Sheet
Price Negotiable Yes
Thickness 3.5-16mm
Logistics Yes
Provide Sample Yes
Warranty Yes
Custom Made Yes
Specification 2+3, 3+3, 5+3, 4+4, 6+5, 8+5, 6+6, 8+6, 8+8, 10+10
Trademark Atmix
Origin Rizhao Shandong
HS Code 72109000
Production Capacity 5000 Tons Per Year
Product Description

Product Description

High hardness abrasion resistant hardness bimetal plate

Atmix wear plate are manufactured by welding one or multiple abrasion resistant layers on a medium or low carbon steel base plate. The overlay alloy has a high amount of chromium carbide hard particles.

Product NameChromium carbide overlay wear plate CCO plate
BrandAtmix
Hardfacing layerHigh chromium carbide overlay material
Chemical CompositionC(%): 3.0-5.0 ,Cr(%): 25-40
MicrostructureThe carbide (Cr7C3) volume fraction in the weld overlay is above 50%
Hardness58-65 HRC
Surface TreatmentHardfacing,clading,coated
TechniqueHardfacing,open arc welding,submerged arc welding
Wear ResistanceHigh wear resistance,30 times higher than low carbon steel and 12 times than heat-treated steel
Impact ResistanceMedium
Flatness tolerance±3mm/m
Thickness toleranceUniform overlay thickness, with tolerance within 0-0.5mm
Main Thicknesses3+3,4+4, 5+5
6+4,6+5,6+6,6+8
8+4,8+5,8+6,8+7,8+8
10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20
12+4,12+5,12+6,12+7,12+8,12+10,12+11,12+12
14+6,14+8,14+10,16+6,16+8,16+10
18+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10
Customized thickness upon request.
Plate SizeOpen arc welding wear plate:1400*3400mm
Submerged arc welding wear plate:1400*3000mm,
1400*3500mm, 2100*3500mm
Customized
Place of OriginChina
ApplicationMining and Construction, Iron&Steel, Cement, Power, Port, Dredging, etc.

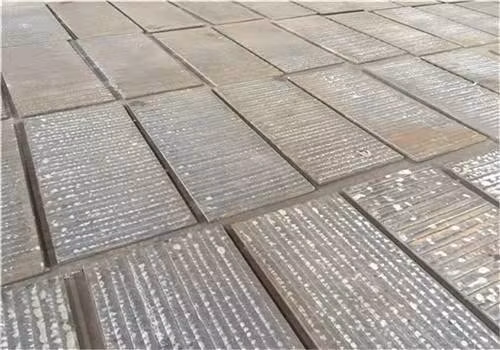

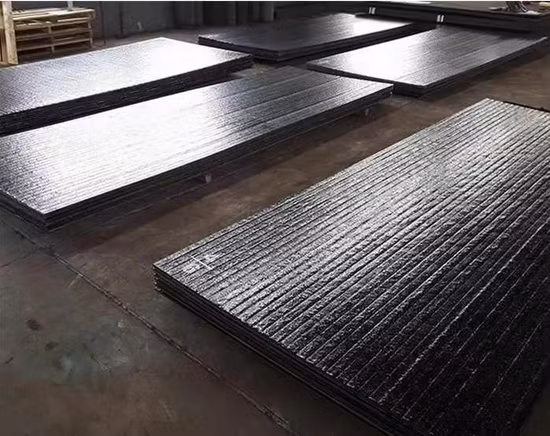

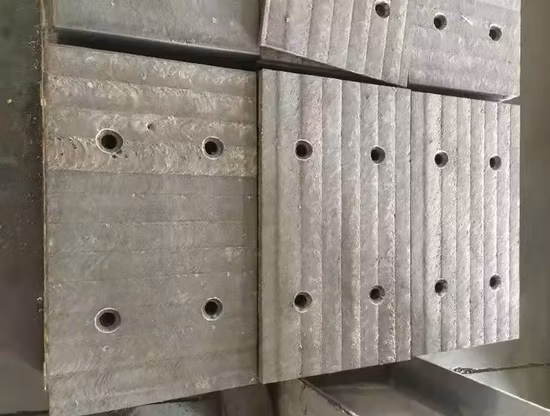

Detailed Photos


Bimetallic Composite Surfacing Overlay Wear Abrasion Resistant Plate Used in Dredging Ports Mines Cement Plants


Bimetallic Composite Surfacing Overlay Wear Abrasion Resistant Plate Used in Dredging Ports Mines Cement Plants

Bimetallic Composite Surfacing Overlay Wear Abrasion Resistant Plate Used in Dredging Ports Mines Cement Plants

Certifications

Bimetallic Composite Surfacing Overlay Wear Abrasion Resistant Plate Used in Dredging Ports Mines Cement Plants

Bimetallic Composite Surfacing Overlay Wear Abrasion Resistant Plate Used in Dredging Ports Mines Cement Plants


Company Profile

Rizhao ATMIX New Materials Co., Ltd. was established in March 2018. The company is located in Shibei Economic Development Zone, Wulian County, Rizhao City, Shandong Province. The company has a superior geographical location and convenient transportation. It is close to Rizhao Port, Dongjiakou Port and other large ports , can provide customers with the most convenient logistics services. The company covers an area of more than 30,000 square meters and izhao ATMIX New Materials Co., Ltd. was established in March 2018. The company is located in Shibei Economic Development Zone, Wulian County, Rizhao City, Shandong Province. The company has a superior geographical location and convenient transportation. It is close to Rizhao Port, Dongjiakou Port and other large ports , can provide customers with the most convenient logistics services. The company covers an area of more than 30,000 square meters and has more than 100 total employees, including more than 30 technical employees of various types. Since its establishment, with huge capital investment and independent technology research and development innovation, the company has produced wear-resistant steel plates, wear-resistant welding wires and related processed parts. It has become a leader in the industry and is widely trusted and supported by users around the world. In the field of wear resistance, we have a professional team to provide customers with wear solutions in harsh working conditions on site, focusing on serving industries such as steel, mining, electric power, ports, petrochemicals, cement, and dredging. The surfacing flux-cored wire and bimetal wear-resistant composite materials independently developed and designed by the company can greatly improve the wear resistance on the basis of the original materials, greatly reduce the replacement rate of the equipment, prolong the service life of the equipment, and reduce the production cost; Favored by major manufacturing industries, our team can provide corresponding materials according to the customer's working conditions, and provide professional equipment, perfect technology and on-site working conditions guidance and services for the application of materials. The company has a complete management system. At present, the company has passed the certification of ISO 9001: 2015 quality management system, ISO 14001: 2015 environmental management system certification, and ISO 45001: 2018 occupational health and safety management system certification. CCS), Det Norske Veritas (DNV), Lloyds Register of Shipping (LR), American Society of Surveyors (ABS), Bureau Veritas (BV) 3Y and 4Y certification. The company has always paid attention to technology research and development investment.

Packaging & Shipping

FAQ

1.Can we supply the sample ?

Yes,we can supply the sample.You can tell us the detail size.
2.Can we accept customize?
Yes,we can.We can manufacture as customer's requirement.You can send the CAD or drawing to us.
3.Quality problem?
According to the standard for production.And the products must pass the quality inspection department.We also accept Third Part Inspection.
4.Delivery time?
Prompt delivery for standard size,or under the contract.
5.Payment term?
Under the contract.
6.Other problem?
You can contact our customer service staff to ask help.
